ACL

ACL rules:

sequential order
once packet is matched - no further comparison
implicit "deny"

Standard - filtering by source, close to the destination , Extended - by source and DESTINATION, close to the source

Extended access list features- source and destination IP, protocol field in Network layer (tcp, udp), port number at Transport layer (eq telnet, ftp).

standard 1 - 99 , 1300 - 1999 (expanded range)
extended 100 - 199, 2000 - 2699 (expanded range)

1 acl per interface/protocol/direction
specific tests - at the top
new entry - at bottom
to remove single line is possible to remove from named list

access-list 1 - to create standard acl

Router(config)#access-list 1

ip access-group 1 in - to apply

Router(config-if)#ip access-group 1

access-class 1 in - to apply to telnet session,in this case only 172.16.10.3 is permitted:

Lab_A(config)#access-list 50 permit 172.16.10.3 Lab_A(config)#line vty 0 4 Lab_A(config-line)#access-class 50 in

sh access-list 1 - will not show which interfaces have an access list applied.

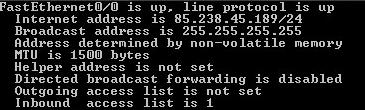

sh ip interface - only this command will tell which interfaces have access lists applied.

show ip access-list - to view extended ?
show running-config -
effect of the applied acl:

Summary:
access-list - create
ip access-group - apply
access-class - telnet

dlia redaktirovania ACL-ov:
1 nuzhno voitio v rezhim ACL -a
2 vipolnit deistvie, naprimer vstavit stroku:
15 permit ip any any

komanda dlia uvelichenia ili umenshenia posledovatelnosti:

Creation of an acl:

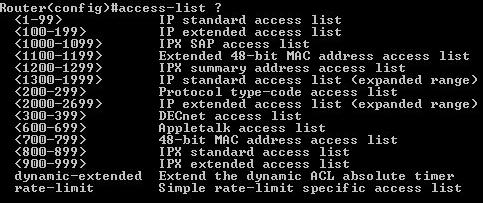

1 choosing list number:

2 choosing action:

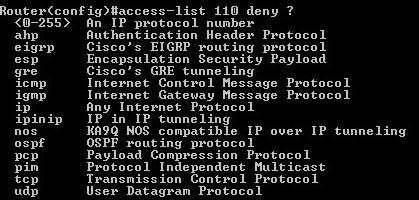

3 choosing protocol:

4 choosing source:

5 - define logical condition

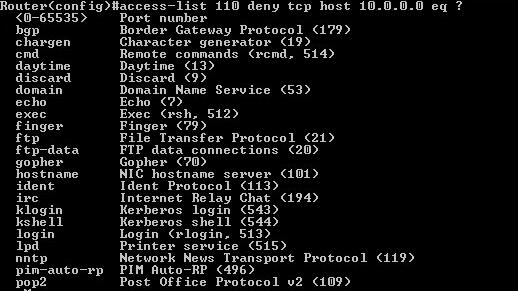

6 - define appropriate port

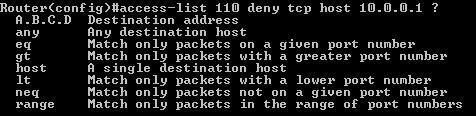

7 - define destination address

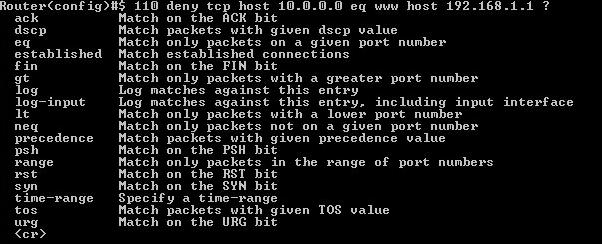

8 - define further specifications

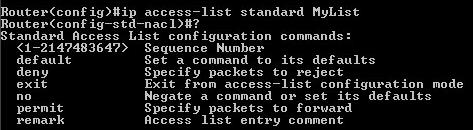

Named access list ip access-list standard MyList - to create named standard acl

Switch Port ACLs

Port ACLs only to be applied to layer 2 interfaces on switches
Only inbound lists
Only named lists
MAC extended access-lists -only extended use MAC as source and destination

show mac access-group - displays MAC access lists applied to all layer 2 interfaces or the specified layer 2 interface (used on layer 2 switches only)

S1(config)#mac access-list extended Todd_MAC_List S1(config-ext-macl)#deny any host 000d.29bd.4b85 S1(config-ext-macl)#permit any any

Deny any addresses from your internal networks
Deny any local host addresses (127.0.0.0/8)
Deny any reserved private addresses
Deny any addresses in the IP multicast address range (224.0.0.0/4)

distribute list - unlike access lists is distributed not to interface, but to routing protocol.It does not stop routing advertisments, just controls them.

Reflexive ACL

Reflexive access lists are access rules configured at a router and used to permit IP traffic for sessions originating within your network but to deny IP traffic for sessions originating outside your network.
If an inside user starts a session with a remote address, the reflexive access list will remember thatremote address and allow it to send traffic back to the inside network during the session.
An outside address that has not received a connection request from inside will be blocked.

Example

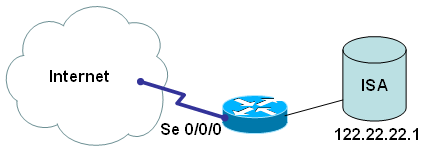

ISA station is only allowed to go out to Internet via 80 port; plus we are collecting these connections for future use - when return traffic is coming back:

Router(config)# ip access-list extended MyACL-forWebOUT Router(config-ext-nacl)# permit tcp host 122.22.22.1 any eq 80 reflect MyACL-ReturnTraff Router(config-ext-nacl)# permit udp host 122.22.22.1 any eq 80 reflect MyACL-ReturnTraff

reflect MyACL-ReturnTraff means that it is in pair with MyACL-forWebOUT

Router(config)# ip access-list extended MyACL-ReturnTraff Router(config-ext-nacl)# evaluate MyACL-forWebOUT

evaluate MyACL-forWebOUT means that we rely on MyACL-forWebOUT access list to allow connections opened by ISA host.

And applying both access lists to corresponding interfaces:

Router(config)# interface S0/0/0 Router(config-if)# ip access-group out MyACL-forWebOUT Router(config)# interface S0/0/0 Router(config-if)# ip access-group in MyACL-ReturnTraff

Time-based ACL example

Corp#config t Corp(config)#time-range no-http Corp(config-time-range)#periodic we? Wednesday weekdays weekend Corp(config-time-range)#periodic weekend ? hh:mm Starting time Corp(config-time-range)#periodic weekend 06:00 to 12:00 Corp(config-time-range)#exit Corp(config)#time-range tcp-yes Corp(config-time-range)#periodic weekend 06:00 to 12:00 Corp(config-time-range)#exit Corp(config)#ip access-list extended Time Corp(config-ext-nacl)#deny tcp any any eq www time-range no-http Corp(config-ext-nacl)#permit tcp any any time-range tcp-yes Corp(config-ext-nacl)#interface f0/0 Corp(config-if)#ip access-group Time in Corp(config-if)#do show time-range time-range entry: no-http (inactive) periodic weekdays 8:00 to 15:00 used in: IP ACL entry time-range entry: tcp-yes (inactive) periodic weekend 8:00 to 13:00 used in: IP ACL entry Corp(config-if)#

remarks:

R2#config t R2(config)#access-list 110 remark Permit Bob from Sales Only To Finance R2(config)#access-list 110 permit ip host 172.16.10.1 172.16.20.0 0.0.0.255 R2(config)#access-list 110 deny ip 172.16.10.0 0.0.0.255 172.16.20.0 0.0.0.255 R2(config)#ip access-list extended No_Telnet R2(config-ext-nacl)#remark Deny all of Sales from Telnetting to Marketing
